Shanghai Yingsang Electronic Technology Co., Ltd.
 |
| Tempat asal: | Cina |
| Nama merek: | Hydromatic |
| Sertifikasi: | ISO9001 |
| Nomor model: | 32CQ-15 32CQ-15 |
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | On Request |
| Kemasan rincian: | Kertas |
| Waktu pengiriman: | 7-10 hari kerja |
| Syarat-syarat pembayaran: | T/T, Western Union |
| Menyediakan kemampuan: | 1000/Bulan |
| MODEL: | 32CQ-15 32CQ-15 | ||
|---|---|---|---|
| Cahaya Tinggi: | 32CQ 15 Magnetic Drive Centrifugal Pump,electroplating Magnetic Drive Centrifugal Pump,industri minyak bumi mag drive pompa air |
||

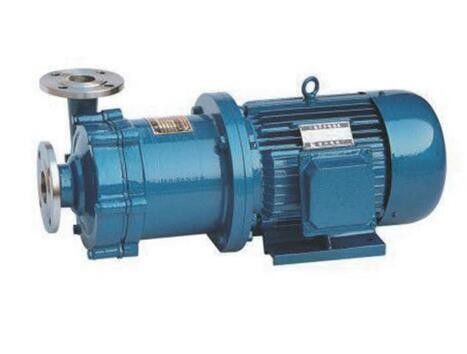

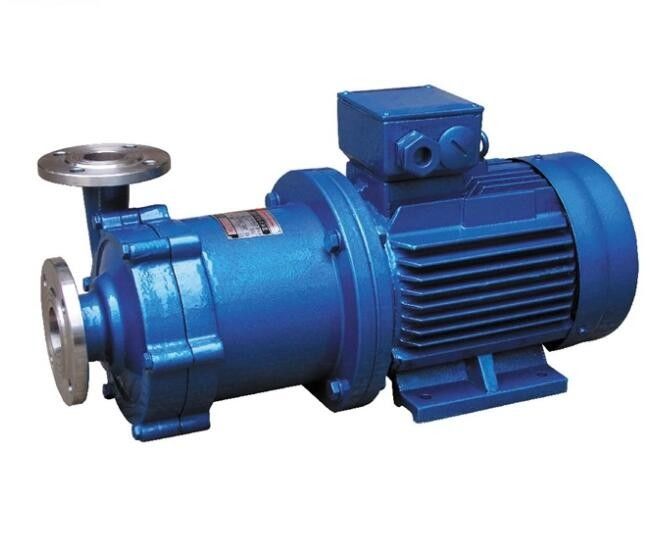

Pompa Kimia Penggerak Magnetik CQ
Rentang Kinerja:
Kapasitas saat ini: 0,8 ~ 200m3/jam;
Lift: 12 ~ 80m;
Kecepatan rotasi: 2900r/menit;
Daya: 0,37 ~ 160kw;
Kaliber: 10 ~ 150mm;
Cocok suhu: -20 ~ 100 °C
Aplikasi:
farmasi,
industri perminyakan,
industri kimia,
industri pelapisan listrik,
perlindungan lingkungan,
pengolan air, industri tekstil, pekerjaan medis dan kesehatan, dll
Kode Pemesanan Model Pompa Kimia Drive Magnetik CQ:
50 CQ -25
50---- Diameter saluran masuk (mm)
CQ---- Pompa Digerakkan Magnetik
25---- Kepala (m)
Kinerja Pompa Kimia Penggerak Magnetik CQ
| Model | Masuk (mm) | Outlet (mm) | Angkat kepala (m) | Aliran (L/mnt) | Kepala hisap (m) | Daya (kw) | Kecepatan (r / mnt) |
| 8CQ-2 | 8 | 6 | 2 | 15 | 2 | 0,025 | 2800 |
| 10CQ-3 | 10 | 10 | 3 | 19 | 2.5 | 0,025 | 2800 |
| 14CQ-5 | 14 | 10 | 5 | 20 | 3 | 0.12 | 2800 |
| 16CQ-8 | 16 | 12 | 8 | 30 | 8 | 0.13 | 2800 |
| 20CQ-12 | 20 | 12 | 12 | 50 | 4 | 0.37 | 2800 |
| 25CQ-15 | 25 | 20 | 15 | 110 | 4 | 1.1 | 2800 |
| 32CQ-15 | 32 | 25 | 15 | 110 | 4 | 1.1 | 2800 |
| 32CQ-25 | 32 | 25 | 25 | 110 | 4 | 1.1 | 2800 |
| 40CQ-20 | 40 | 32 | 20 | 180 | 7.5 | 2.2 | 2800 |
| 40CQ-32 | 40 | 32 | 32 | 200 | 8 | 4 | 2800 |
| 50CQ-25 | 50 | 40 | 25 | 240 | 8.3 | 4 | 2800 |
| 50CQ-40 | 50 | 40 | 40 | 220 | 7 | 4 | 2800 |
| 50CQ-50 | 50 | 40 | 50 | 130 | 8 | 5.5 | 2800 |
| 65CQ-25 | 65 | 50 | 25 | 280 | 7 | 5.5 | 2800 |
| 65CQ-35 | 65 | 50 | 35 | 450 | 6 | 7.5 | 2800 |
| 80CQ-35 | 80 | 65 | 35 | 850 | 7 | 11 | 2800 |
| 80CQ-50 | 80 | 65 | 50 | 850 | 7 | 15 | 2800 |
